LED Street Lights » ST03 Series

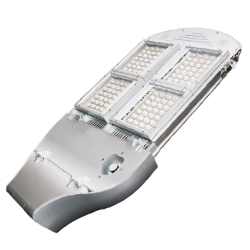

OPTST03-80W

Add product to your query Add product to your query

Category: LED Street Lights » ST03 Series

Producer: OPTOLUMIN

Download datasheet
Print datasheet

LED quantity 80 x 1W LED
Product color Srebro
Accessories Photocell solar battery, air turbine, remote control
Energy label A*
Equivalent lamp power 93W ~ 233W HPS
Power consumption 93W
IP rating 66
IK rating 9
Light color 3000-3500K / 4000-4500K / 5500-6500K / >7000K
Total Lumens > 9200Lm
Lifetime 50.000h
Light Distribution Type I, Type II, Type III
Beam angle 130°x80° (TI, TII), 150°x80° (TIII)
Materials and finishing Aluminum alloy + tempered glass
Input voltage & frequency AC100~277V 50~60Hz
illuminance & scope at 10 meters 10
illuminance & scope at 4 meters 17Lux
Color Rendering Index Ra > 75
Recycling YES
Color temperature 3000-3500K/4000-4500K/5500-6500K/>7000K
Operating temperature -40° - 45°C
Storage temperature -40° - 60°C
LED type HP
ULOR 0
Net weight 13.10kg
LED efficiency 105Lm/W (130Lm/W CREE)
Product dimensions 794x416x150mm
illuminance wide A 25
illuminance wide B 16


SPECIAL PARAMETERS AVAILABLE ON REQUEST
W - PURE WHITE, WW - WARM WHITE
